Wet Film Gauge,Wholesale china

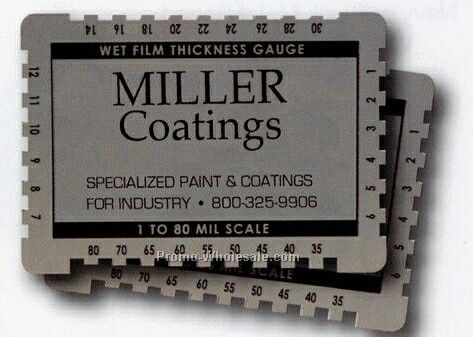

Specifications:                                                                                                                               1) Wet Film Thickness Gauges are used to determine the thickness of liquid coatings. The measurements show an approximate information on the thickness of a liquid layer.The Wet Film Thickness Gauge is available in rectangular or sexangular shape with different subdivisions of the measuring range each.

2) Complies with ASTM D 4414-A, ISO 2808-7B, BS 3900-C5-7B, NF T30-125

3) Front view(scale range 0-80 mil)Rear view(scale range 0-2032 m)

4) Technical Data:

Material: stainless steel (HH-AM-2032B)

5) Size: 83 x 58 mm2 approx.

6) Thickness: 0.8 mm approx.

7) Measuring ranges:1 to 6 mil (25 to 152 um);   7 to 12 mil (178 to 305 um);   14 to 30 mil (356 to 762 um);  35 to 80 mil (889 to 2032 um)

8) Scale indications: front mil, rear m;                                                                                        9) Sample cost: USD500/pcs, the cost would be use payment for product after confirmed the order.

10) Sample time:  2Weeks after confirmed the order.

11)Production Time: 60days after confirmed the order.

12)  Packing: at least 2 inner box packaging£¬150 PCS/MASTER CARTON, G.W£º10KGS£»MEASUREMENTS:27(L)*16(W)*16(H)cm .
